Red Dot AC Evaporator Unit 12v Wall Mount R-6840-0P

Red Dot SKU: R-6840-0P

$679.12

Only 21 left!

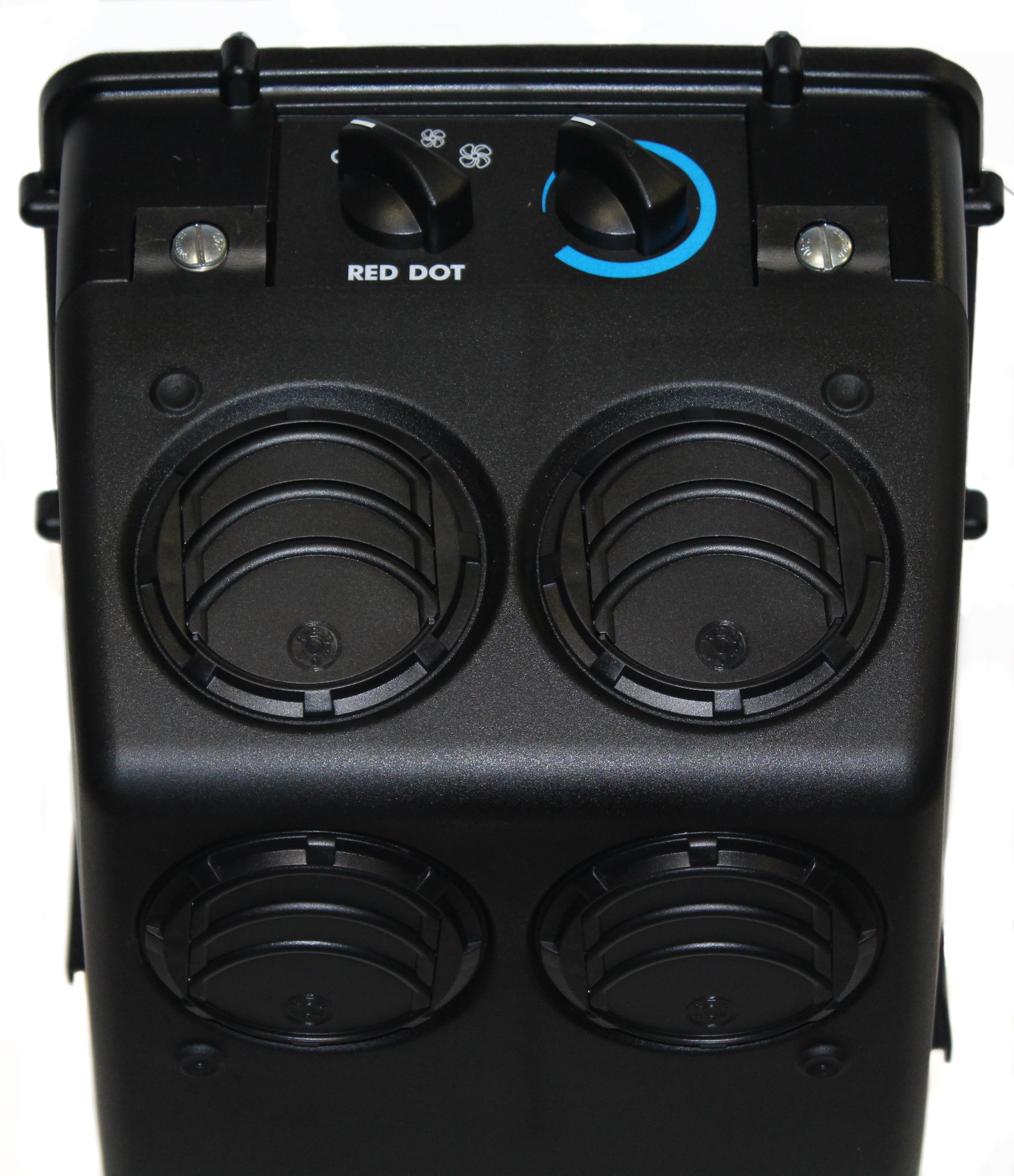

The Red Dot R-6840 Series Wall Mount evaporators use advanced coil and blower technology to produce the highest capacity possible from a compact wall mounted unit. The resin housing is tough and good looking - perfect for cabs where performance and fit and finish are important. Multi-directional diffusers send air where you need it.

The Evaporator is mounted inside the operator space and absorbs heat from the cabin air into the refrigerant. The capacity of the Evaporator is limited by several factors including the capacity of the compressor. Most evaporators will realize maximum capacity when paired with a Sanden SD7H15 or Sanden FLX7 model compressor.

  • Part Number: R-6840-0P
  • Type: Evaporator Unit
  • Mounting: Wall
  • Voltage: 12 vdc
  • Current Draw: 18.6 amps @ 13.6 vdc
  • Capacity: 22300 btu cool
  • Airflow: 325 cfm
  • R-134A
  • lightweight 16 lbs
  • recirculation air only
  • optional recirculation air filter 78R5291 sold separately

Recommended Pairings:

  • Evaporator: included
  • Compressor: Sold separate. Any Sanden SD7H15 with pulley matched to your engine and clutch voltage matched to your electrical system
  • Condenser: Sold separate. R-9720 series or a condenser having capacity higher than 20,000 btu
  • Drier: 74R1106 which has integral mounting bracket and switch port to simplify installation
  • Hose kit: Sold Separate 10-7-0002
