The Receiver/Drier contains filter media to filter solids from the refrigerant (such as wear metals from the compressor), and desiccant to remove moisture from the refrigerant. Like any filter, the Receiver/Drier has a limited ability to store the debris it captures. Replace the receiver drier under any of 3 circumstances: 1. Anytime the compressor is replaced 2. Anytime the system has been open to the atmosphere for more than 30 minutes 3. Annually.

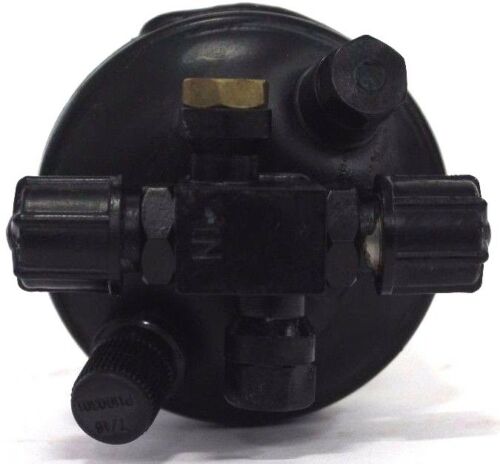

- Part Number: 74R2306

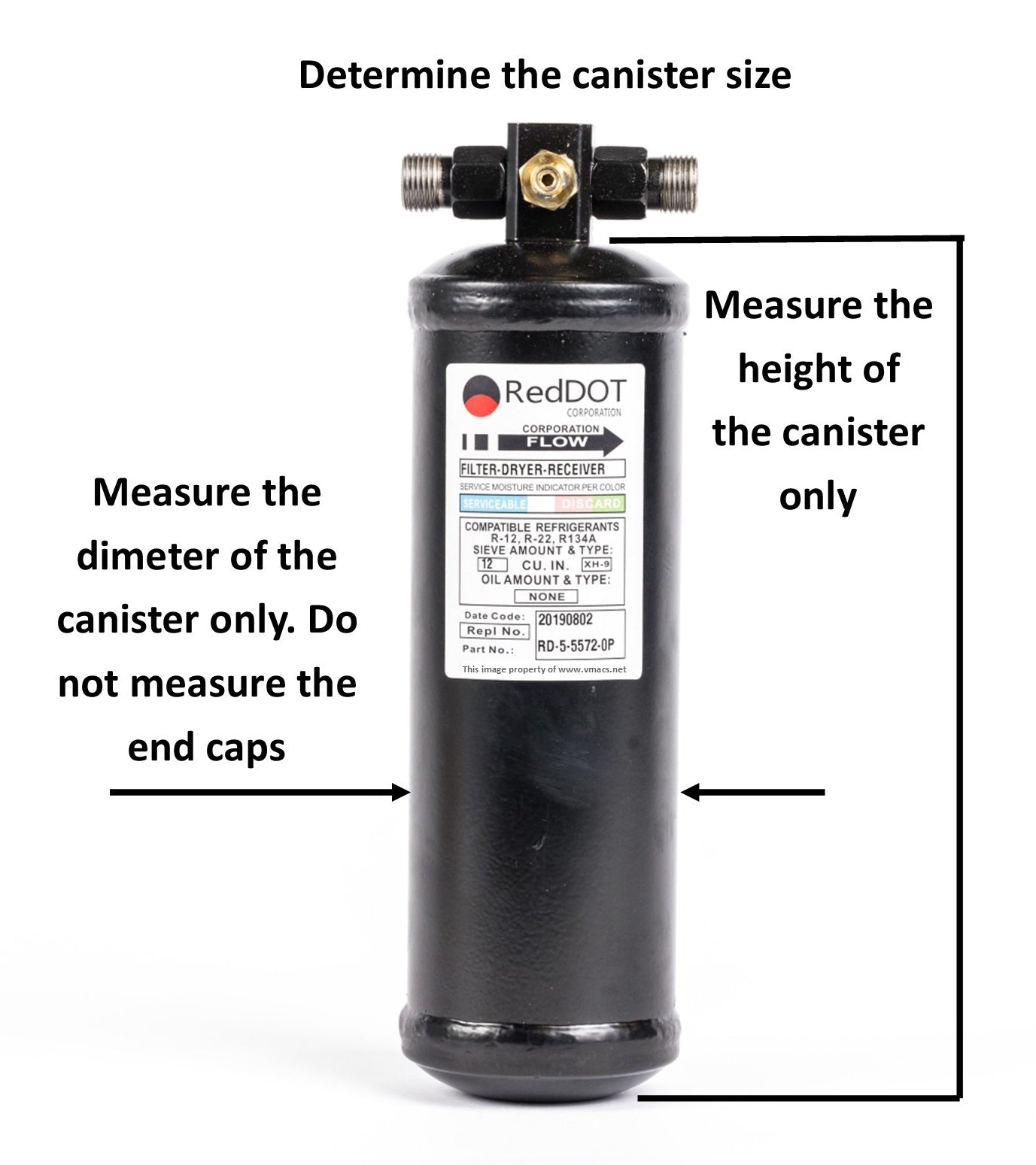

- Canister Diameter: 2.875"
- Canister Height: 8.875"
- Inlet Fitting: #6 Male O-Ring
- Outlet Fitting: #6 Male O-Ring
- High Capacity: No
- Fuse Plug or Pressure Relief: Fuse Plug
- Switch Port: Yes
- Mounting Position: Vertical/Upright
- Other: Sight glass and moisture indicator
Interchange Numbers:
- 07-1002A
- 07-1003
- 07-1003A
- 088133-01
- 1-6449
- 1-6451
- 1-6484
- 1-6658
- 1691738C91
- 1914002
- 208209
- 33471
- 33537
- 37-13571-AM
- 3949130
- 402245
- 402253
- 406165
- 4379-RD565040P
- 4379-RD565041P
- 540078
- 7132
- 800-2128
- 9827053
- ABP N83 319154
- ABP N83 319190
- ABP N83 319374
- E-804026
- JA11350
- JA11400
- K251-521
- K251-563
- RD-5-6504-1P
- RDHRD565040P
- RDHRD565041P
- RDT742306
- 1691738-C91
