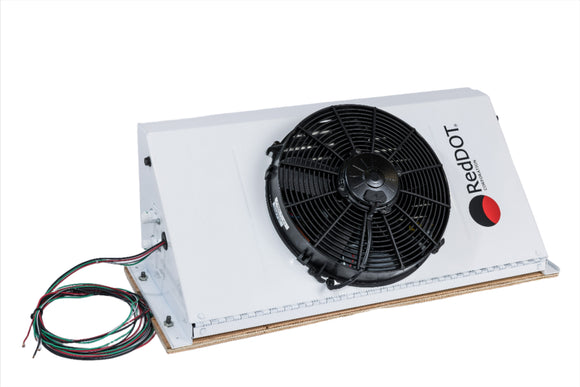

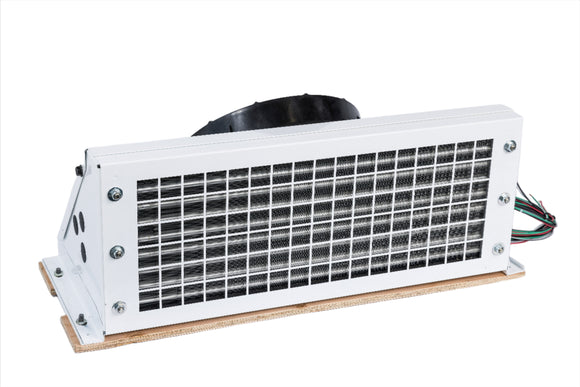

Red Dot AC Condenser Unit 24v R-9720-12-24P

Red Dot SKU: R-9720-12-24P

3.0 / 5.0 based on 2 reviews

$1,354.12

Only 1 left!

The R-9720 Series is the industry's most versatile and rugged remote mount condenser, Its unique design allows installation on a horizontal surface or mounted below a roof or floor panel simply by changing two hose connections. Suitable for off-highway applications, commercial trucks, or specialty vehicles where a radiator-mount or rooftop condenser cannot be used.

The condenser is mounted on the exterior of the vehicle and extracts the heat contained within the refrigerant. The Condenser capacity to reject heat must be higher than the Evaporator capacity to absorb heat. As a rule of thumb, multiply the evaporator capacity x 1.3 to find the minimum allowable Condenser capacity.

  • Part Number: R-9720-12-24P
  • Type: Condenser unit
  • Voltage: 24 vdc
  • Current Draw:16.3 amps @27.2 vdc
  • Capacity: 39000 btu
  • R-134A
  • powder coated steel housing
  • integral receiver/drier
  • Integral binary pressure switch
  • Integral fan relay
Recommended Pairings:
  • Evaporator: Sold separate. R-6840 or R-9755 or R-8500 or R-8545 or an evaporator having capacity less than 30,000 btu
  • Compressor: Sold separate. Any Sanden SD7H15 with pulley matched to your engine and clutch matched to your electrical system
  • Condenser: included
  • Drier: included
  • Hose kit: Sold Separate 10-7-0002
