Red Dot AC Unit 24v Rooftop Mount R-6101-0-24P

Red Dot SKU: R-6101-0-24P

5.0 / 5.0 based on 1 review

$1,999.35

Only 7 left!

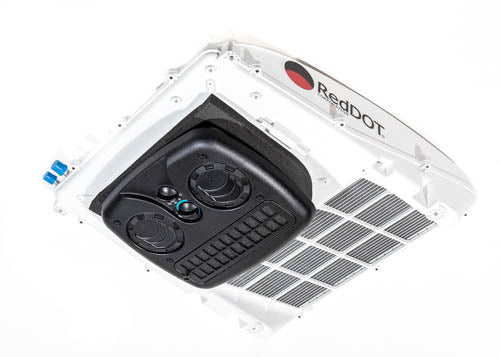

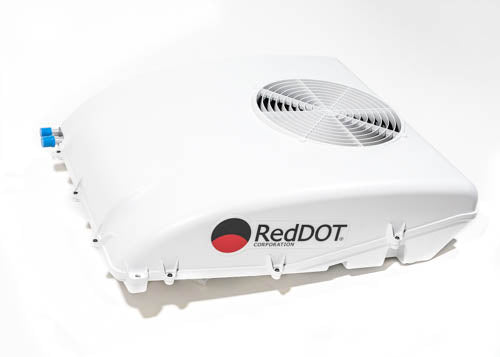

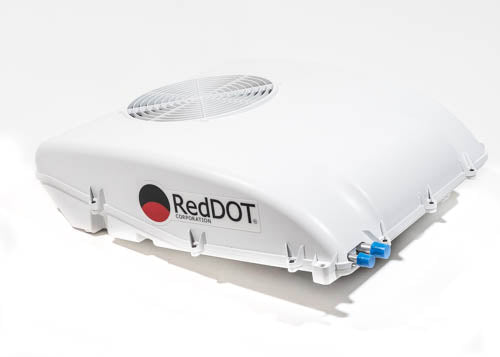

The Red Dot R-6101 Series rooftop mounted AC unit is a sleek low profile design that looks right at home on today's truck and equipment cabs. The injection molded housing has pockets to hold the receiver-drier, blower assembly and evaporator coil so they're easier to service. A 12 inch Spal fan, dual-scroll/dual inlet Spal blower, rifled-tube evaporator and a parallel flow condenser contribute to impressive performance.

  • Part Number: R-6101-0-24P
  • Type: AC Unit
  • Mounting: Rooftop
  • Voltage: 24 vdc
  • Current Draw: 12.9 amps @ 27.2 vdc
  • Capacity: 21300 btu cool
  • Airflow: 299 cfm
  • R-134A
  • recirculation air filter included
  • light weight 40 lbs
  • separate compressor required
  • Replacement roof gasket seal: RD-5-15378-0P
Recommended Pairings:
  • Evaporator: included
  • Compressor: Sold separate. Any Sanden SD7H15 with pulley matched to your engine and clutch voltage matched to your electrical system
  • Condenser: included
  • Drier: included
  • Hose kit: Sold Separate 10-7-0004
