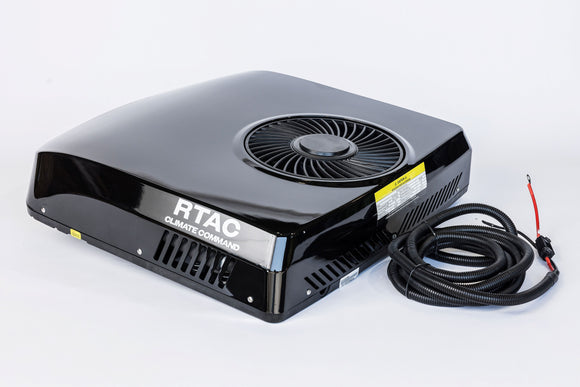

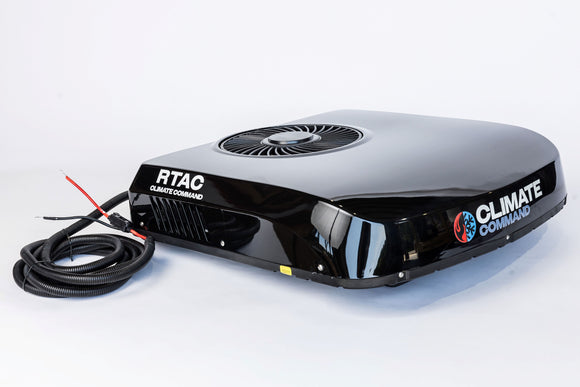

Climate Command 12 volt Rooftop RV Air Conditioner RTAC12G2BLK

Climate Command has designed a rooftop RV AC unit for use in a multitude of light and medium duty applications. This purpose built 12v rooftop RV A/C is specifically designed for off grid capable vehicles with reliable battery storage. Built with premium components in a compact housing, the shock mounted invertor scroll compressor, brushless condenser fan and brushless evaporator blower allow the RTAC series units to quietly cool properly insulated vans, trailers, Class B RV's and other on-road vehicles quietly, effectively and efficiently.

Improvements of the 2nd Generation model include:

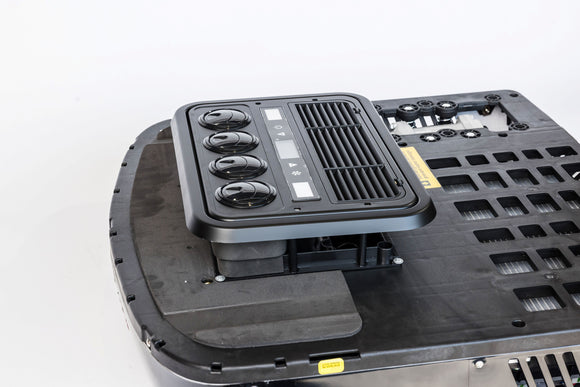

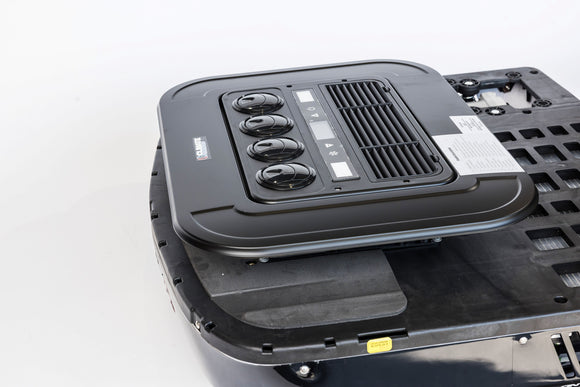

• Cleanable air filter screen from inside the vehicle with no tools required
• Revised exterior cover for improved condenser airflow characteristics
• Color matched choice of Black or White exterior cover & interior plenum
• Revised mounting bracket location for a wider distribution of rooftop clamping force
• Addition of narrow ceiling plenum trim ring. Now with a wide trim ring for retrofits where you may have a large mounting hole gap to cover and a narrow trim ring for a minimalistic look when you can control the size of the mounting hole.

We are committed to your complete satisfaction. Count on us for comprehensive support including a full 12-month warranty, helpful technical assistance, and reliable shipping from our North Carolina Warehouse weekdays between 8:00 and 4:30 eastern time.

• Part Number: RTAC12G2BLK
• Type: Self Contained AC unit
• Mounting: Rooftop
• Voltage: 12 vdc
• Current draw: up to 58 amps maximum
• Power Cables: 13' 16mm (6awg)
• Capacity: 10000 btu cool
• Airflow: 265 cfm
• Return Air filtration: Yes - cleanable screen

• Shipping Weight: 60 lbs
• Installed Weight: 49 lbs
• Unit ships prefilled with R-134A refrigerant
• 28.5"L x 28.25"W x 6.25"H (installed height 7.5")

• Fits a standard 14" x 14" opening

• Allowable Mounting Surface Thickness: 1.5"-3'5"
• RTACDE duct extension kit is available separately for mounting surfaces up to 7.5" thick
• Ideal applications include RV, camper vans, adventure vans, overlanding vehicles, delivery vehicles, work trucks and many more!


WARNING: This unit requires significant amp draw to function properly. Consult a professional for installation. Serious equipment damage can occur if improper/inadequate electrical connections are attempted. This unit is not recommended for severe duty applications such as agriculture, earthmoving, forestry or mining.
