Red Dot HVAC Unit 24v Rooftop Mount R-9777-8-24P

Red Dot SKU: R-9777-8-24P

€2.486,95

Only 5 left!

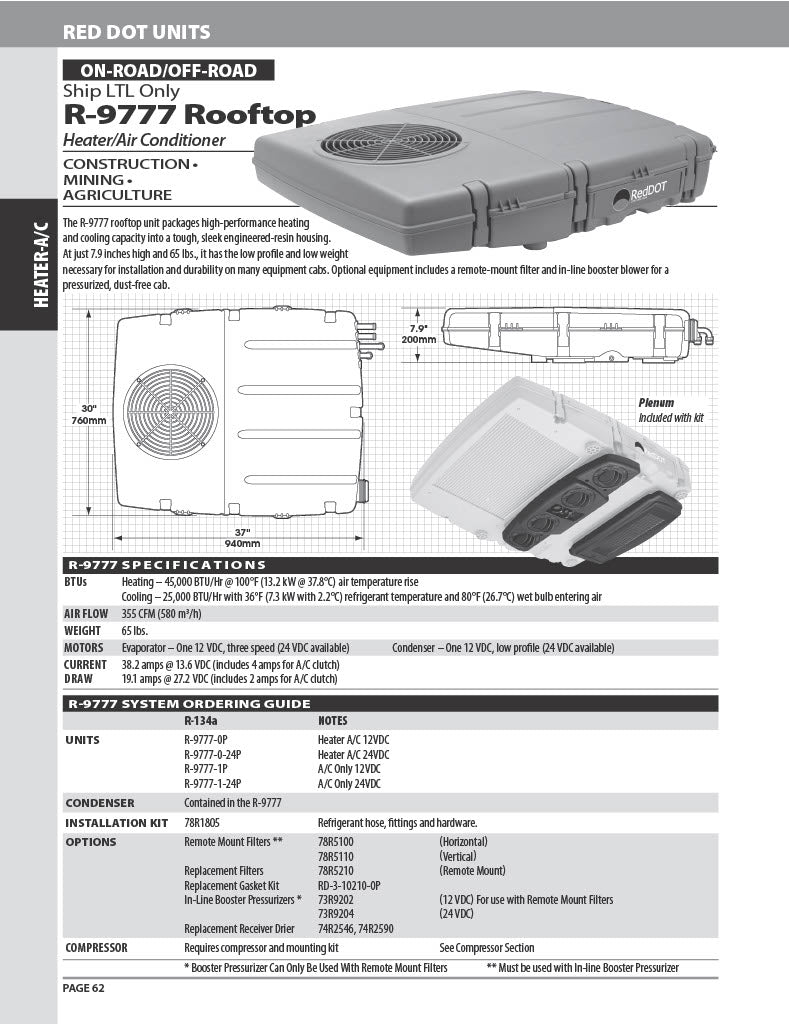

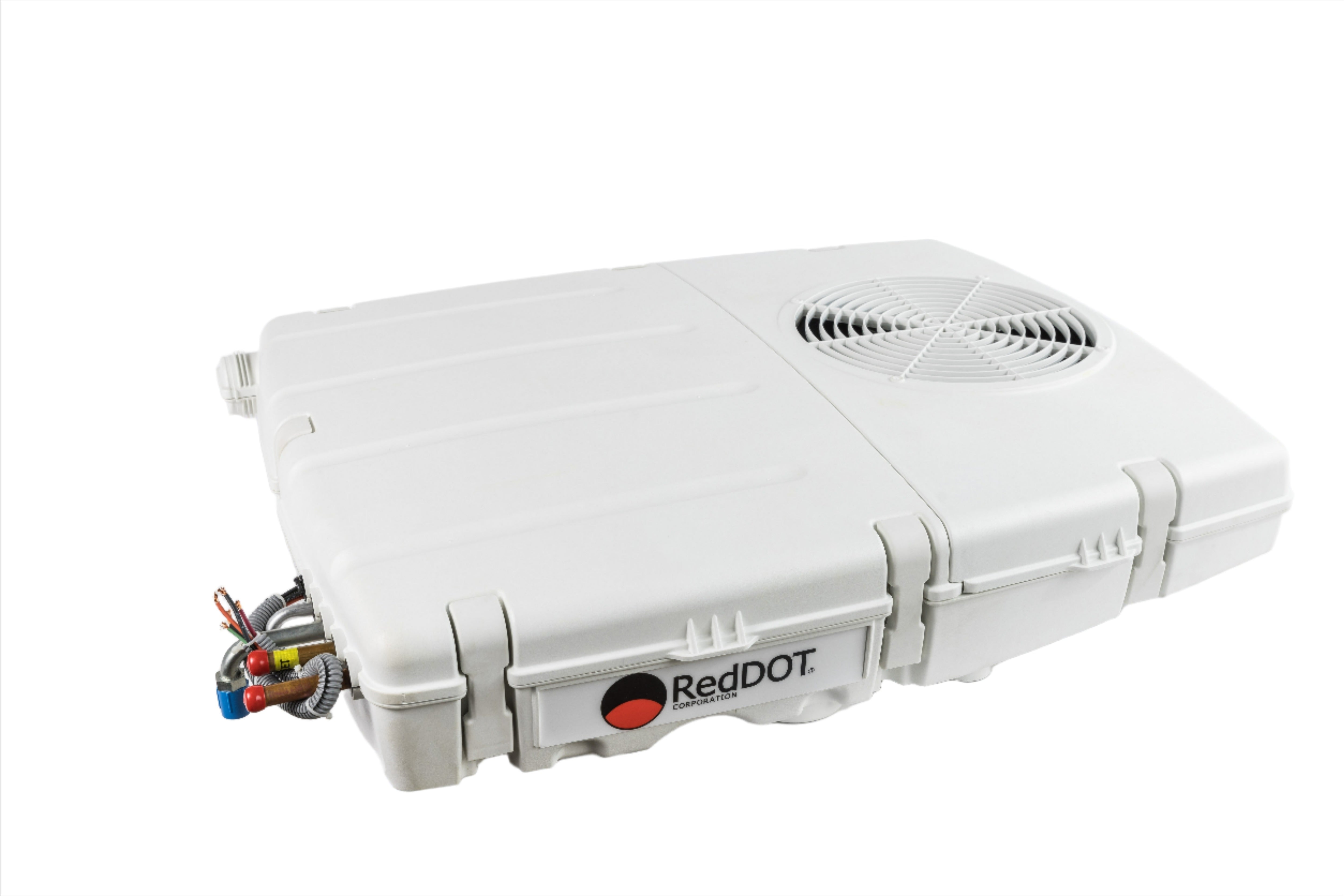

The R-9777 rooftop unit packages high performance heating and cooling capacity into a tough, sleek engineered resin housing. At just 7.9 inches high and 65 lbs, it has the low profile and low weight necessary for installation and durability on many equipment cabs. Optional remote filters and pressurizers are available for a dust free cab.
  • Part Number: R-9777-8-24P
  • Type: HVAC unit
  • Mounting: Rooftop
  • Voltage: 24 vdc
  • Current Draw: 19.1 amps @ 27.2 vdc
  • Capacity: 25000 btu cool
  • Capacity: 45000 btu heat
  • Airflow: 355 cfm
  • R-134A
  • recirculation air filter included
  • light weight 65 lbs
  • separate compressor required
  • fresh air capable
  • DUE TO THE SIZE OF THIS PART, THIS UNIT WILL ONLY SHIP LTL FREIGHT ON A PALLET. INTERNATIONAL SHIPMENTS PERMITTED TO CANADA ONLY.
Recommended Pairings:
  • Evaporator: included
  • Compressor: Sold separate. Any Sanden SD7H15 with pulley matched to your engine and clutch voltage matched to your electrical system
  • Condenser: included
  • Drier: included
  • Hose kit: Sold Separate 10-7-0004
